Machine Dimension
FFS Granules

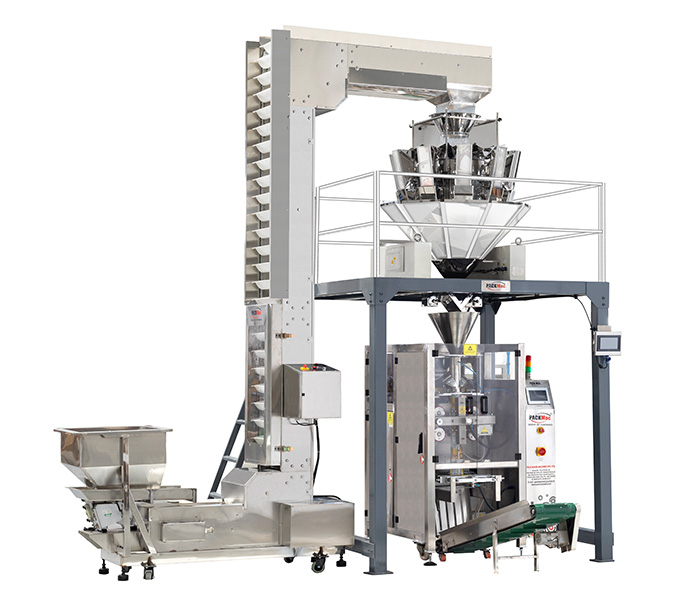

Multi Head Weigher with High Speed Pouch Packing Machine
| Packing Range | 10 gm to 1kg |
|---|---|
| Filling System | (Multi Head Weigher) 10 Head weigh Filler / 14 Head weigh Filler |
| Filling Accuracy | 0.5% |
| Type of Sealing | Center Seal |
| Packing Material | Kurkure, Puffs, Potato Chips, Namkeen, Grains Ets. |
| Film Size | 100mm – 550mm width100mm – 200mm length |
| Film Roll Type | Laminated Filmin Roll Supported Film E.g. Aluminum Foil Pe, PP |
| Speed | 55 to 60 bag/min, 85 to 90 bag/min (Varies with the nature of product & filling range) |
| Power | 3kw 230v / AC / Single Phase / 50hz |
| Machine Size | 72″ x 96″ x 126 |
| Weight | 1400kg (Approx) |
| Compressed Air | 6CFM @ 6bar |
| Optional | Batch Coding Device |
